3051A
Punta 5xD con fori
Articoli: 50 | Diametri: 50 | Rivestimenti: 1 | Frontali: 1
HMX
Dettagli
Rivestimenti
Balinit® X-Pro (HMX)
Tutti i rivestimenti PVD vengono applicati nello stabilimento di Silmax con macchinari Oerlikon Balzers®.
Scopri di più
Materiali lavorati
Acciaio < 800 n/mm²
Acciaio < 1000 n/mm²
Acciaio < 1300 n/mm²
Acciaio da stampi
Ghisa
Gamma 3051A
Tipo frontale
Riferimento gambo
Diametro tagliente
Lunghezza tagliente
Rivestimento
Prodotti

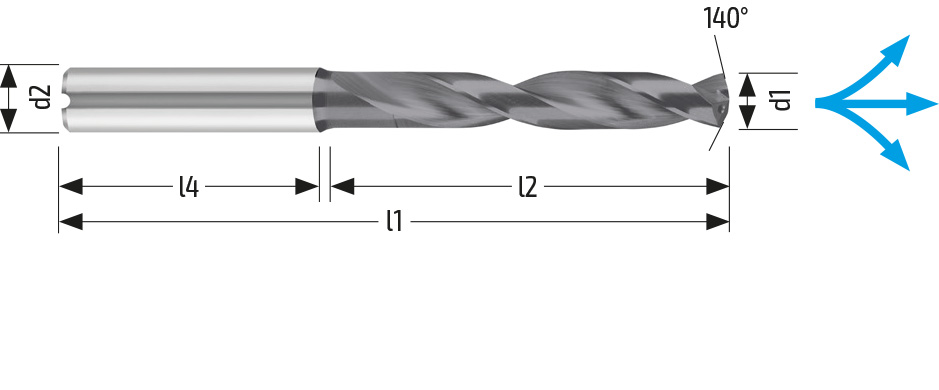

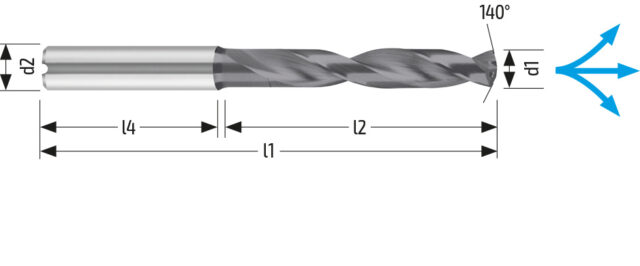

:| d1 m7 | d2 h6 | l2 | l4 | l1 | Rivestimenti | Codice | Ordina | |
|---|---|---|---|---|---|---|---|---|
| 2,80 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A028 | ||
| 3,00 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A030 | ||
| 3,10 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A031 | ||
| 3,20 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A032 | ||
| 3,30 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A033 | ||
| 3,40 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A034 | ||
| 3,50 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A035 | ||
| 3,60 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A036 | ||
| 3,70 | 6,00 | 28,0 | 36,0 | 66 | X-Pro (HMX) | HMX3051A037 | ||
| 3,80 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A038 | ||
| 3,90 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A039 | ||
| 4,00 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A040 | ||
| 4,10 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A041 | ||
| 4,20 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A042 | ||
| 4,30 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A043 | ||
| 4,40 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A044 | ||
| 4,50 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A045 | ||
| 4,60 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A046 | ||
| 4,70 | 6,00 | 36,0 | 36,0 | 74 | X-Pro (HMX) | HMX3051A047 | ||
| 4,80 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A048 | ||
| 4,90 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A049 | ||
| 5,00 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A050 | ||
| 5,10 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A051 | ||
| 5,20 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A052 | ||
| 5,30 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A053 | ||
| 5,40 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A054 | ||
| 5,50 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A055 | ||
| 5,60 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A056 | ||
| 5,70 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A057 | ||
| 5,80 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A058 | ||
| 5,90 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A059 | ||
| 6,00 | 6,00 | 44,0 | 36,0 | 82 | X-Pro (HMX) | HMX3051A060 | ||
| 6,10 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A061 | ||
| 6,20 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A062 | ||
| 6,30 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A063 | ||
| 6,40 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A064 | ||
| 6,50 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A065 | ||
| 6,60 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A066 | ||
| 6,70 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A067 | ||
| 6,80 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A068 | ||
| 6,90 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A069 | ||
| 7,00 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A070 | ||
| 7,10 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A071 | ||
| 7,20 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A072 | ||
| 7,30 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A073 | ||
| 7,40 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A074 | ||
| 7,50 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A075 | ||
| 7,60 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A076 | ||
| 7,70 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A077 | ||
| 7,80 | 8,00 | 53,0 | 36,0 | 91 | X-Pro (HMX) | HMX3051A078 |
Brochure
Richiedi informazioni
Se hai dubbi, hai bisogno di una guida nella scelta o semplicemente vuoi avere maggiori informazioni su questo utensile, contattaci.
