185

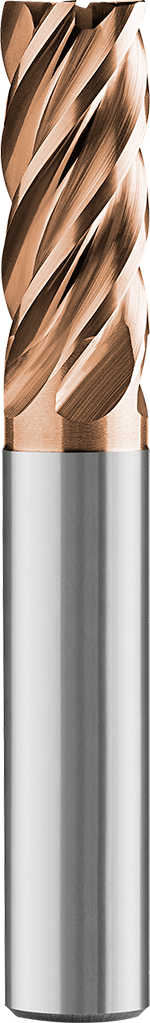

Fünfschneidige Fräser mit hohem Spanabfuhr
Artikel: 50 | Durchmesser : 6 | Beschichtungen : 2 | Frontal : 2
HMH
HMC
Details
Beschichtungen
Balinit® Tisaflex (HMH)
Balinit® Latuma (HMC)
Alle PVD-Beschichtungen werden im Silmax-Werk mit Anlagen von Oerlikon Balzers® aufgebracht.
Erfahren Sie mehr
bearbeitete Werkstoffe
ferritischer/martensitischer Stahl
Austenitstahl
PH Duplex
Titan
Serie
: normal
Varianten 185
Stirnseitig
Referenzschaft
Schneidkantendurchmesser
Schneidkantenlänge
Beschichtung
Produkte

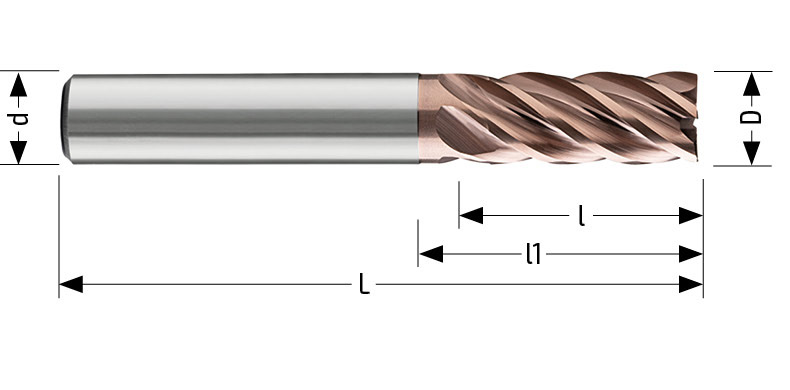

:| D h10 | d h6 | L | l | l1 | a | Cr/r | 45° | Z | Schaftreferenz |
Beschichtungen
(Balinit®) |
Code | Bestellen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | — | 0,10 | 5 | HA | Tisaflex (HMH) | HMH185060 | ||
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | — | 0,10 | 5 | HB | Tisaflex (HMH) | HMH185060W | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | — | 0,15 | 5 | HA | Tisaflex (HMH) | HMH185080 | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | — | 0,15 | 5 | HB | Tisaflex (HMH) | HMH185080W | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | — | 0,15 | 5 | HA | Tisaflex (HMH) | HMH185100 | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | — | 0,15 | 5 | HB | Tisaflex (HMH) | HMH185100W | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | — | 0,15 | 5 | HA | Tisaflex (HMH) | HMH185120 | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | — | 0,15 | 5 | HB | Tisaflex (HMH) | HMH185120W | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | — | 0,20 | 5 | HA | Tisaflex (HMH) | HMH185160 | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | — | 0,20 | 5 | HB | Tisaflex (HMH) | HMH185160W | ||
| 20,00 | 20,00 | 104 | 38,00 | 52,0 | 0,20 | — | 0,20 | 5 | HA | Tisaflex (HMH) | HMH185200 | ||
| 20,00 | 20,00 | 104 | 38,00 | 52,0 | 0,20 | — | 0,20 | 5 | HB | Tisaflex (HMH) | HMH185200W | ||
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | — | 0,10 | 5 | HA | Latuma (HMC) | HMC185060 | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | — | 0,15 | 5 | HA | Latuma (HMC) | HMC185080 | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | — | 0,15 | 5 | HA | Latuma (HMC) | HMC185100 | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | — | 0,15 | 5 | HA | Latuma (HMC) | HMC185120 | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | — | 0,20 | 5 | HA | Latuma (HMC) | HMC185160 | ||
| 20,00 | 20,00 | 104 | 38,00 | 52,0 | 0,20 | — | 0,20 | 5 | HA | Latuma (HMC) | HMC185200 | ||
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | 0,50 | — | 5 | HA | Tisaflex (HMH) | HMH185060CR05 | ||
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | 0,50 | — | 5 | HB | Tisaflex (HMH) | HMH185060CR05W | ||
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | 1,00 | — | 5 | HA | Tisaflex (HMH) | HMH185060CR10 | ||
| 6,00 | 6,00 | 57 | 13,00 | 20,0 | 0,15 | 1,00 | — | 5 | HB | Tisaflex (HMH) | HMH185060CR10W | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | 0,50 | — | 5 | HA | Tisaflex (HMH) | HMH185080CR05 | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | 0,50 | — | 5 | HB | Tisaflex (HMH) | HMH185080CR05W | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | 1,00 | — | 5 | HA | Tisaflex (HMH) | HMH185080CR10 | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | 1,00 | — | 5 | HB | Tisaflex (HMH) | HMH185080CR10W | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | 2,00 | — | 5 | HA | Tisaflex (HMH) | HMH185080CR20 | ||
| 8,00 | 8,00 | 63 | 19,00 | 25,0 | 0,15 | 2,00 | — | 5 | HB | Tisaflex (HMH) | HMH185080CR20W | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | 0,50 | — | 5 | HA | Tisaflex (HMH) | HMH185100CR05 | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | 0,50 | — | 5 | HB | Tisaflex (HMH) | HMH185100CR05W | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | 1,00 | — | 5 | HA | Tisaflex (HMH) | HMH185100CR10 | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | 1,00 | — | 5 | HB | Tisaflex (HMH) | HMH185100CR10W | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | 2,00 | — | 5 | HA | Tisaflex (HMH) | HMH185100CR20 | ||
| 10,00 | 10,00 | 72 | 22,00 | 30,0 | 0,15 | 2,00 | — | 5 | HB | Tisaflex (HMH) | HMH185100CR20W | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 0,50 | — | 5 | HA | Tisaflex (HMH) | HMH185120CR05 | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 0,50 | — | 5 | HB | Tisaflex (HMH) | HMH185120CR05W | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 1,00 | — | 5 | HA | Tisaflex (HMH) | HMH185120CR10 | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 1,00 | — | 5 | HB | Tisaflex (HMH) | HMH185120CR10W | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 2,00 | — | 5 | HA | Tisaflex (HMH) | HMH185120CR20 | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 2,00 | — | 5 | HB | Tisaflex (HMH) | HMH185120CR20W | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 3,00 | — | 5 | HA | Tisaflex (HMH) | HMH185120CR30 | ||
| 12,00 | 12,00 | 83 | 26,00 | 36,0 | 0,20 | 3,00 | — | 5 | HB | Tisaflex (HMH) | HMH185120CR30W | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 1,00 | — | 5 | HA | Tisaflex (HMH) | HMH185160CR10 | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 1,00 | — | 5 | HB | Tisaflex (HMH) | HMH185160CR10W | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 2,00 | — | 5 | HA | Tisaflex (HMH) | HMH185160CR20 | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 2,00 | — | 5 | HB | Tisaflex (HMH) | HMH185160CR20W | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 3,00 | — | 5 | HA | Tisaflex (HMH) | HMH185160CR30 | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 3,00 | — | 5 | HB | Tisaflex (HMH) | HMH185160CR30W | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 4,00 | — | 5 | HA | Tisaflex (HMH) | HMH185160CR40 | ||
| 16,00 | 16,00 | 92 | 32,00 | 42,0 | 0,20 | 4,00 | — | 5 | HB | Tisaflex (HMH) | HMH185160CR40W |
Fordern Sie Informationen an
Sollten Sie Zweifel haben, eine Hilfe bei der Auswahl benötigen oder einfach nur weitere Informationen über dieses Werkzeug erhalten wollen, kontaktieren Sie uns.
