06220

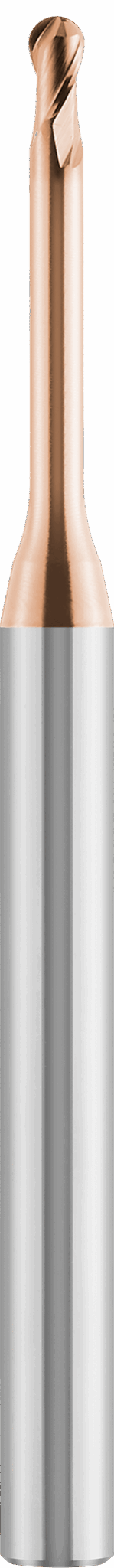

Fraise hémisphérique à deux dents pour nervures queue renforcée
Articles: 99 | Diamètres: 9 | Revêtements: 1 | Affûtage en bout: 1
Diamètre partie coupante
Rayon de bec
Longueur utile
Longueur dégagement
Longueur totale
Stock
Produits :
| D+0/-0,02 | Cr/r | l | l1 | d1 | β | L | dh6 | ε 0,5° | ε 1,0° | ε 2,0° | ε 3,0° | Z | Rif. gambo |
Revêtements (Balinit®) |
Code | Stock | Commandez | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0,50 | 0,25 | 0,35 | 2,0 | 0,45 | 12,0 | 50 | 6,00 | 2,68 | 2,83 | 3,11 | 3,36 | 2 | HA | HMH - Tisaflex | F06220H00050002 | |||
| 0,50 | 0,25 | 0,35 | 3,0 | 0,45 | 12,0 | 50 | 6,00 | 3,74 | 3,94 | 4,28 | 4,57 | 2 | HA | HMH - Tisaflex | F06220H00050003 | |||
| 0,50 | 0,25 | 0,35 | 4,0 | 0,45 | 12,0 | 50 | 6,00 | 4,80 | 5,04 | 5,42 | 5,74 | 2 | HA | HMH - Tisaflex | F06220H00050004 | |||
| 0,50 | 0,25 | 0,35 | 5,0 | 0,45 | 12,0 | 50 | 6,00 | 5,86 | 6,12 | 6,55 | 6,90 | 2 | HA | HMH - Tisaflex | F06220H00050005 | |||
| 0,50 | 0,25 | 0,35 | 6,0 | 0,45 | 12,0 | 50 | 6,00 | 6,91 | 7,20 | 7,66 | 8,04 | 2 | HA | HMH - Tisaflex | F06220H00050006 | |||
| 0,50 | 0,25 | 0,35 | 8,0 | 0,45 | 15,0 | 50 | 6,00 | 9,00 | 9,34 | 9,87 | 10,28 | 2 | HA | HMH - Tisaflex | F06220H00050007 | |||
| 0,50 | 0,25 | 0,35 | 10,0 | 0,45 | 15,0 | 50 | 6,00 | 11,09 | 11,47 | 12,04 | 12,50 | 2 | HA | HMH - Tisaflex | F06220H00050008 | |||
| 0,60 | 0,30 | 0,40 | 2,0 | 0,55 | 12,0 | 50 | 6,00 | 2,67 | 2,83 | 3,10 | 3,35 | 2 | HA | HMH - Tisaflex | F06220H00060001 | |||
| 0,60 | 0,30 | 0,40 | 3,0 | 0,55 | 12,0 | 50 | 6,00 | 3,74 | 3,94 | 4,27 | 4,56 | 2 | HA | HMH - Tisaflex | F06220H00060002 | |||
| 0,60 | 0,30 | 0,40 | 4,0 | 0,55 | 12,0 | 50 | 6,00 | 4,80 | 5,03 | 5,41 | 5,73 | 2 | HA | HMH - Tisaflex | F06220H00060003 | |||
| 0,60 | 0,30 | 0,40 | 5,0 | 0,55 | 12,0 | 50 | 6,00 | 5,85 | 6,12 | 6,54 | 6,89 | 2 | HA | HMH - Tisaflex | F06220H00060004 | |||
| 0,60 | 0,30 | 0,40 | 6,0 | 0,55 | 12,0 | 50 | 6,00 | 6,91 | 7,20 | 7,66 | 8,03 | 2 | HA | HMH - Tisaflex | F06220H00060005 | |||
| 0,60 | 0,30 | 0,40 | 8,0 | 0,55 | 15,0 | 50 | 6,00 | 9,00 | 9,34 | 9,86 | 10,28 | 2 | HA | HMH - Tisaflex | F06220H00060006 | |||
| 0,60 | 0,30 | 0,40 | 10,0 | 0,55 | 15,0 | 50 | 6,00 | 11,08 | 11,47 | 12,04 | 12,49 | 2 | HA | HMH - Tisaflex | F06220H00060007 | |||
| 0,80 | 0,40 | 0,50 | 2,0 | 0,75 | 12,0 | 50 | 6,00 | 2,67 | 2,82 | 3,08 | 3,33 | 2 | HA | HMH - Tisaflex | F06220H00080001 | |||
| 0,80 | 0,40 | 0,50 | 3,0 | 0,75 | 12,0 | 50 | 6,00 | 3,73 | 3,93 | 4,25 | 4,54 | 2 | HA | HMH - Tisaflex | F06220H00080002 | |||
| 0,80 | 0,40 | 0,50 | 4,0 | 0,75 | 12,0 | 50 | 6,00 | 4,79 | 5,02 | 5,40 | 5,72 | 2 | HA | HMH - Tisaflex | F06220H00080003 | |||
| 0,80 | 0,40 | 0,50 | 5,0 | 0,75 | 12,0 | 50 | 6,00 | 5,85 | 6,11 | 6,53 | 6,88 | 2 | HA | HMH - Tisaflex | F06220H00080004 | |||
| 0,80 | 0,40 | 0,50 | 6,0 | 0,75 | 12,0 | 50 | 6,00 | 6,90 | 7,19 | 7,64 | 8,02 | 2 | HA | HMH - Tisaflex | F06220H00080005 | |||
| 0,80 | 0,40 | 0,50 | 8,0 | 0,75 | 12,0 | 50 | 6,00 | 9,00 | 9,33 | 9,85 | 10,27 | 2 | HA | HMH - Tisaflex | F06220H00080006 | |||
| 0,80 | 0,40 | 0,50 | 10,0 | 0,75 | 15,0 | 50 | 6,00 | 11,08 | 11,46 | 12,03 | 12,48 | 2 | HA | HMH - Tisaflex | F06220H00080007 | |||
| 0,80 | 0,40 | 0,50 | 12,0 | 0,75 | 20,0 | 50 | 6,00 | 13,16 | 13,58 | 14,19 | 14,67 | 2 | HA | HMH - Tisaflex | F06220H00080008 | |||
| 0,50 | 0,25 | 0,35 | 1,0 | 0,45 | 12,0 | 50 | 6,00 | 1,61 | 1,71 | 1,91 | 2,10 | 2 | HA | HMH - Tisaflex | F06220H00050001 | |||
| 1,00 | 0,50 | 0,80 | 2,0 | 0,95 | 15,0 | 50 | 6,00 | 2,66 | 2,81 | 3,07 | 3,30 | 2 | HA | HMH - Tisaflex | F06220H00100001 | |||
| 1,00 | 0,50 | 0,80 | 5,0 | 0,95 | 12,0 | 50 | 6,00 | 5,84 | 6,10 | 6,52 | 6,86 | 2 | HA | HMH - Tisaflex | F06220H00100011 | |||
| 1,20 | 0,60 | 1,00 | 4,0 | 1,15 | 12,0 | 50 | 6,00 | 4,78 | 5,00 | 5,37 | 5,68 | 2 | HA | HMH - Tisaflex | F06220H00120002 | |||
| 1,20 | 0,60 | 1,00 | 5,0 | 1,15 | 12,0 | 50 | 6,00 | 5,84 | 6,09 | 6,50 | 6,85 | 2 | HA | HMH - Tisaflex | F06220H00120003 | |||
| 1,20 | 0,60 | 1,00 | 6,0 | 1,15 | 12,0 | 50 | 6,00 | 6,89 | 7,17 | 7,62 | 7,99 | 2 | HA | HMH - Tisaflex | F06220H00120004 | |||
| 1,20 | 0,60 | 1,00 | 8,0 | 1,15 | 12,0 | 50 | 6,00 | 8,99 | 9,32 | 9,83 | 10,24 | 2 | HA | HMH - Tisaflex | F06220H00120005 | |||
| 1,20 | 0,60 | 1,00 | 10,0 | 1,15 | 12,0 | 50 | 6,00 | 11,07 | 11,45 | 12,01 | 12,46 | 2 | HA | HMH - Tisaflex | F06220H00120006 | |||
| 1,50 | 0,75 | 1,35 | 4,0 | 1,45 | 12,0 | 50 | 6,00 | 4,77 | 4,99 | 5,35 | 5,66 | 2 | HA | HMH - Tisaflex | F06220H00150001 | |||
| 1,50 | 0,75 | 1,35 | 5,0 | 1,45 | 12,0 | 50 | 6,00 | 5,83 | 6,08 | 6,49 | 6,82 | 2 | HA | HMH - Tisaflex | F06220H00150006 | |||
| 1,00 | 0,50 | 0,80 | 4,0 | 0,95 | 12,0 | 50 | 6,00 | 4,79 | 5,01 | 5,39 | 5,70 | 2 | HA | HMH - Tisaflex | F06220H00100002 | |||
| 1,00 | 0,50 | 0,80 | 6,0 | 0,95 | 12,0 | 50 | 6,00 | 6,90 | 7,18 | 7,63 | 8,00 | 2 | HA | HMH - Tisaflex | F06220H00100003 | |||
| 1,00 | 0,50 | 0,80 | 8,0 | 0,95 | 12,0 | 50 | 6,00 | 8,99 | 9,33 | 9,84 | 10,25 | 2 | HA | HMH - Tisaflex | F06220H00100004 | |||
| 1,00 | 0,50 | 0,80 | 10,0 | 0,95 | 12,0 | 50 | 6,00 | 11,08 | 11,45 | 12,02 | 12,47 | 2 | HA | HMH - Tisaflex | F06220H00100005 | |||
| 1,20 | 0,60 | 1,00 | 2,0 | 1,15 | 12,0 | 50 | 6,00 | 2,65 | 2,79 | 3,05 | 3,28 | 2 | HA | HMH - Tisaflex | F06220H00120001 | |||
| 1,50 | 0,75 | 1,35 | 8,0 | 1,45 | 12,0 | 50 | 6,00 | 8,98 | 9,31 | 9,82 | 10,23 | 2 | HA | HMH - Tisaflex | F06220H00150002 | |||
| 1,50 | 0,75 | 1,35 | 6,0 | 1,45 | 12,0 | 50 | 6,00 | 6,88 | 7,16 | 7,61 | 7,97 | 2 | HA | HMH - Tisaflex | F06220H00150007 | |||
| 1,50 | 0,75 | 1,35 | 10,0 | 1,45 | 12,0 | 50 | 6,00 | 11,07 | 11,44 | 12,00 | 12,45 | 2 | HA | HMH - Tisaflex | F06220H00150008 | |||
| 1,00 | 0,50 | 0,80 | 12,0 | 0,95 | 15,0 | 60 | 6,00 | 13,16 | 13,57 | 14,19 | 14,66 | 2 | HA | HMH - Tisaflex | F06220H00100006 | |||
| 1,00 | 0,50 | 0,80 | 14,0 | 0,95 | 12,0 | 60 | 6,00 | 15,23 | 15,68 | 16,33 | 16,84 | 2 | HA | HMH - Tisaflex | F06220H00100007 | |||
| 1,00 | 0,50 | 0,80 | 16,0 | 0,95 | 12,0 | 60 | 6,00 | 17,30 | 17,78 | 18,47 | 18,99 | 2 | HA | HMH - Tisaflex | F06220H00100008 | |||
| 1,00 | 0,50 | 0,80 | 20,0 | 0,95 | 12,0 | 60 | 6,00 | 21,43 | 21,96 | 22,71 | 23,27 | 2 | HA | HMH - Tisaflex | F06220H00100010 | |||
| 1,00 | 0,50 | 0,80 | 15,0 | 0,95 | 12,0 | 60 | 6,00 | 16,26 | 16,73 | 17,40 | 17,92 | 2 | HA | HMH - Tisaflex | F06220H00100012 | |||
| 1,20 | 0,60 | 1,00 | 12,0 | 1,15 | 12,0 | 60 | 6,00 | 13,15 | 13,57 | 14,18 | 14,65 | 2 | HA | HMH - Tisaflex | F06220H00120007 | |||
| 1,20 | 0,60 | 1,00 | 14,0 | 1,15 | 12,0 | 60 | 6,00 | 15,23 | 15,67 | 16,33 | 16,83 | 2 | HA | HMH - Tisaflex | F06220H00120008 | |||
| 1,20 | 0,60 | 1,00 | 15,0 | 1,15 | 12,0 | 60 | 6,00 | 16,26 | 16,72 | 17,40 | 17,91 | 2 | HA | HMH - Tisaflex | F06220H00120009 | |||
| 1,20 | 0,60 | 1,00 | 16,0 | 1,15 | 12,0 | 60 | 6,00 | 17,30 | 17,77 | 18,46 | 18,99 | 2 | HA | HMH - Tisaflex | F06220H00120010 | |||
| 1,20 | 0,60 | 1,00 | 18,0 | 1,15 | 12,0 | 60 | 6,00 | 19,36 | 19,87 | 20,59 | 21,13 | 2 | HA | HMH - Tisaflex | F06220H00120011 |
