031F
Schruppfräser, normale Ausführung
Artikel: 24 | Durchmesser : 12 | Beschichtungen: 2 | Frontal : 1
Produkte :

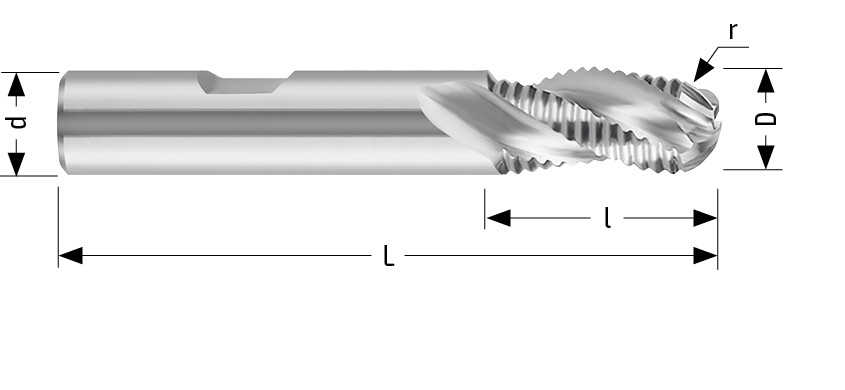

| Dk12 | d | L | l | Cr/r | Z | Schaftreferenz |
Beschichtungen (Balinit®) |
Code | Bestellen | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 57 | 13,00 | 3,00 | 3 | FORMB | SIL - Unbeschichtet | SIL031F06 | ||
| 8,00 | 10,00 | 69 | 19,00 | 4,00 | 3 | FORMB | SIL - Unbeschichtet | SIL031F08 | ||
| 10,00 | 10,00 | 72 | 22,00 | 5,00 | 3 | FORMB | SIL - Unbeschichtet | SIL031F10 | ||
| 12,00 | 12,00 | 83 | 26,00 | 6,00 | 3 | FORMB | SIL - Unbeschichtet | SIL031F12 | ||
| 14,00 | 12,00 | 83 | 26,00 | 7,00 | 4 | FORMB | SIL - Unbeschichtet | SIL031F14 | ||
| 16,00 | 16,00 | 92 | 32,00 | 8,00 | 4 | FORMB | SIL - Unbeschichtet | SIL031F16 | ||
| 18,00 | 16,00 | 92 | 32,00 | 9,00 | 4 | FORMB | SIL - Unbeschichtet | SIL031F18 | ||
| 20,00 | 20,00 | 104 | 38,00 | 10,00 | 4 | FORMB | SIL - Unbeschichtet | SIL031F20 | ||
| 22,00 | 20,00 | 104 | 38,00 | 11,00 | 4 | FORMB | SIL - Unbeschichtet | SIL031F22 | ||
| 25,00 | 25,00 | 121 | 45,00 | 12,50 | 6 | FORMB | SIL - Unbeschichtet | SIL031F25 | ||
| 30,00 | 25,00 | 121 | 45,00 | 15,00 | 6 | FORMB | SIL - Unbeschichtet | SIL031F30 | ||
| 32,00 | 32,00 | 133 | 53,00 | 16,00 | 6 | FORMB | SIL - Unbeschichtet | SIL031F32 | ||
| 6,00 | 6,00 | 57 | 13,00 | 3,00 | 3 | FORMB | HMG - Alcrona | NIG031F06 | ||
| 8,00 | 10,00 | 69 | 19,00 | 4,00 | 3 | FORMB | HMG - Alcrona | NIG031F08 | ||
| 10,00 | 10,00 | 72 | 22,00 | 5,00 | 3 | FORMB | HMG - Alcrona | NIG031F10 | ||
| 12,00 | 12,00 | 83 | 26,00 | 6,00 | 3 | FORMB | HMG - Alcrona | NIG031F12 | ||
| 14,00 | 12,00 | 83 | 26,00 | 7,00 | 4 | FORMB | HMG - Alcrona | NIG031F14 | ||
| 16,00 | 16,00 | 92 | 32,00 | 8,00 | 4 | FORMB | HMG - Alcrona | NIG031F16 | ||
| 18,00 | 16,00 | 92 | 32,00 | 9,00 | 4 | FORMB | HMG - Alcrona | NIG031F18 | ||
| 20,00 | 20,00 | 104 | 38,00 | 10,00 | 4 | FORMB | HMG - Alcrona | NIG031F20 | ||
| 22,00 | 20,00 | 104 | 38,00 | 11,00 | 4 | FORMB | HMG - Alcrona | NIG031F22 | ||
| 25,00 | 25,00 | 121 | 45,00 | 12,50 | 6 | FORMB | HMG - Alcrona | NIG031F25 | ||
| 30,00 | 25,00 | 121 | 45,00 | 15,00 | 6 | FORMB | HMG - Alcrona | NIG031F30 | ||
| 32,00 | 32,00 | 133 | 53,00 | 16,00 | 6 | FORMB | HMG - Alcrona | NIG031F32 |
