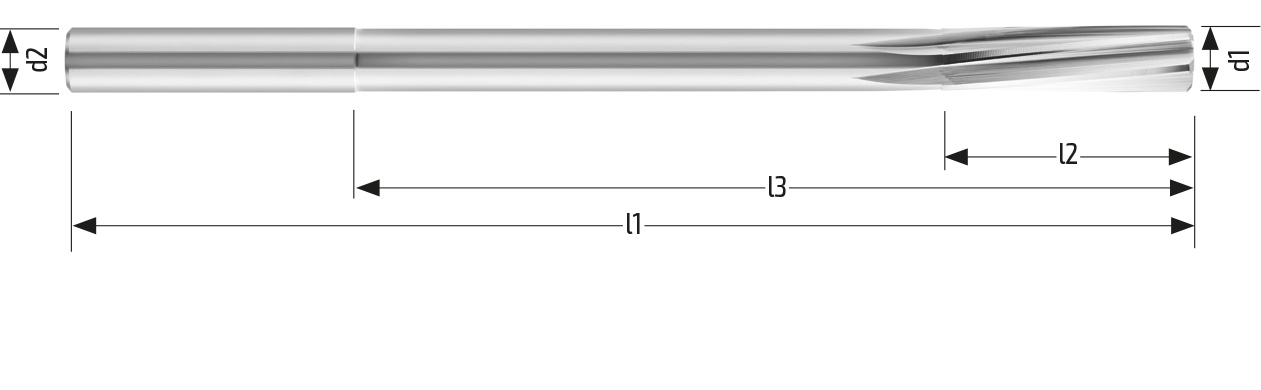

Schneidkantendurchmesser
Eckradius
Schneidkantenlänge
Senklänge
Gesamtlänge
Produkte :
| D +0,005/+0 | d h8 | L | l | l1 | Z | Schaftreferenz |
Beschichtungen
(Balinit®) |
Code | Bestellen | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2,00 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040200 | ||
| 2,01 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040201 | ||
| 2,02 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040202 | ||
| 2,03 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040203 | ||
| 2,04 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040204 | ||
| 2,05 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040205 | ||
| 2,06 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040206 | ||
| 2,07 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040207 | ||
| 2,08 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040208 | ||
| 2,09 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040209 | ||
| 2,10 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040210 | ||
| 2,11 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040211 | ||
| 2,12 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040212 | ||
| 2,13 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040213 | ||
| 2,14 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040214 | ||
| 2,15 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040215 | ||
| 2,16 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040216 | ||
| 2,17 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040217 | ||
| 2,18 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040218 | ||
| 2,19 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040219 | ||
| 2,20 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040220 | ||
| 2,21 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040221 | ||
| 2,22 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040222 | ||
| 2,23 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040223 | ||
| 2,24 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040224 | ||
| 2,25 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040225 | ||
| 2,26 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040226 | ||
| 2,27 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040227 | ||
| 2,28 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040228 | ||
| 2,29 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040229 | ||
| 2,30 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040230 | ||
| 2,31 | 2,00 | 110 | 18,00 | 65,0 | 4 | HA | Alcrona | HMG5040231 | ||
| 2,32 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040232 | ||
| 2,33 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040233 | ||
| 2,34 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040234 | ||
| 2,35 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040235 | ||
| 2,36 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040236 | ||
| 2,37 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040237 | ||
| 2,38 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040238 | ||
| 2,39 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040239 | ||
| 2,40 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040240 | ||
| 2,41 | 2,30 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040241 | ||
| 2,42 | 2,50 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040242 | ||
| 2,43 | 2,50 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040243 | ||
| 2,44 | 2,50 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040244 | ||
| 2,45 | 2,50 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040245 | ||
| 2,46 | 2,50 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040246 | ||
| 2,47 | 2,50 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040247 | ||
| 2,48 | 2,50 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040248 | ||
| 2,49 | 2,50 | 120 | 20,00 | 65,0 | 4 | HA | Alcrona | HMG5040249 |
