HMP PHM
High performance drills

3050A

5xD drill without internal coolant

Items: 50 | Diameters: 50 | Coatings: 1 | Front types: 1

Phm 3050a

Details

Coatings Coatings
Balinit® X-Pro (HMX)
All PVD coatings are applied at Silmax plant with Oerlikon Balzers® machines. Read more
Machined Materials Machined Materials
Steel < 800 n/mm²
Steel < 1000 n/mm²
Steel < 1300 n/mm²
Cast iron

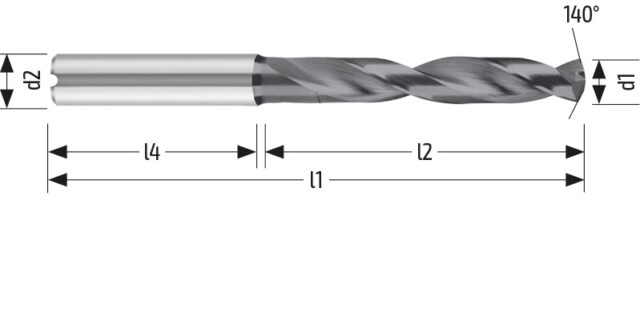

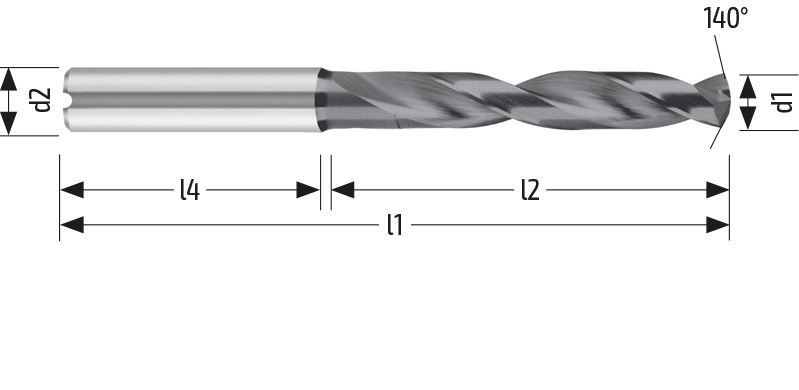

Phm 3050a Dimensions

Range 3050A

Tool face type
Shank reference
Diameter of Cutting Edge
Cutting length
Coating
Products
:
d1 m7 d2 h6 l2 l4 l1 Coatings Code Order
0,30 3,00 1,0 38 X-Pro (HMX) HMX3050A003
0,40 3,00 2,0 38 X-Pro (HMX) HMX3050A004
0,50 3,00 4,0 38 X-Pro (HMX) HMX3050A005
0,60 3,00 4,0 38 X-Pro (HMX) HMX3050A006
0,70 3,00 5,0 38 X-Pro (HMX) HMX3050A007
0,80 3,00 6,0 38 X-Pro (HMX) HMX3050A008
0,90 3,00 7,0 38 X-Pro (HMX) HMX3050A009
1,00 3,00 9,0 29,0 38 X-Pro (HMX) HMX3050A010
1,10 3,00 9,0 28,0 38 X-Pro (HMX) HMX3050A011
1,20 3,00 10,0 27,0 38 X-Pro (HMX) HMX3050A012
1,30 3,00 10,0 26,5 38 X-Pro (HMX) HMX3050A013
1,40 3,00 11,0 25,5 38 X-Pro (HMX) HMX3050A014
1,50 3,00 11,0 25,0 38 X-Pro (HMX) HMX3050A015
1,60 3,00 12,0 25,0 38 X-Pro (HMX) HMX3050A016
1,70 3,00 12,0 25,0 38 X-Pro (HMX) HMX3050A017
1,80 3,00 12,0 24,5 38 X-Pro (HMX) HMX3050A018
1,90 3,00 12,0 24,5 38 X-Pro (HMX) HMX3050A019
2,00 3,00 13,0 30,0 50 X-Pro (HMX) HMX3050A020
2,10 3,00 13,0 30,0 50 X-Pro (HMX) HMX3050A021
2,20 3,00 14,0 30,0 50 X-Pro (HMX) HMX3050A022
2,30 3,00 14,0 30,0 50 X-Pro (HMX) HMX3050A023
2,40 3,00 15,0 30,0 50 X-Pro (HMX) HMX3050A024
2,50 3,00 15,0 30,0 50 X-Pro (HMX) HMX3050A025
2,60 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A026
2,70 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A027
2,80 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A028
2,90 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A029
3,00 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A030
3,10 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A031
3,20 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A032
3,30 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A033
3,40 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A034
3,50 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A035
3,60 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A036
3,70 6,00 28,0 36,0 66 X-Pro (HMX) HMX3050A037
3,80 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A038
3,90 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A039
4,00 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A040
4,10 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A041
4,20 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A042
4,30 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A043
4,40 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A044
4,50 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A045
4,60 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A046
4,70 6,00 36,0 36,0 74 X-Pro (HMX) HMX3050A047
4,80 6,00 44,0 36,0 82 X-Pro (HMX) HMX3050A048
4,90 6,00 44,0 36,0 82 X-Pro (HMX) HMX3050A049
5,00 6,00 44,0 36,0 82 X-Pro (HMX) HMX3050A050
5,10 6,00 44,0 36,0 82 X-Pro (HMX) HMX3050A051
5,20 6,00 44,0 36,0 82 X-Pro (HMX) HMX3050A052
